| Quantity: | |
|---|---|
| Specification | Z1 | Z2 | L | H |
| 20*1/2F | 19.5 | 32 | 51.5 | 45 |
| 25*1/2F | 19.5 | 32 | 54.5 | 49 |
| 25*3/4F | 25 | 34.5 | 61 | 51 |
| 32*1/2F | 19.5 | 38.5 | 58 | 58.5 |
| 32*3/4F | 24.5 | 38 | 65.5 | 59 |
| 32*1F | 30.5 | 39.5 | 72.5 | 60.5 |
| 40*1/2F | 19.5 | 42.5 | 76 | 68 |
| 40*3/4F | 24.5 | 42.5 | 76.5 | 68.5 |
| 40*1F | 31 | 43 | 83.5 | 69.5 |
| 40*11/4F | 39 | 48.5 | 86.5 | 72 |
| 50*1/2F | 19.5 | 45.5 | 81 | 77 |
| 50*3/4F | 24.5 | 48 | 81 | 78 |
| 50*1F | 31 | 49.5 | 80.5 | 81 |
| 50*11/2F | 45 | 57.5 | 97 | 90 |
| 63*1/2F | 29.5 | 56 | 81.5 | 93 |
| 63*3/4F | 24.5 | 54.5 | 81.5 | 93 |
| 63*1F | 31 | 57.5 | 92 | 94 |
| 63*2F | 58 | 69.5 | 118 | 110.5 |
Product Introduction

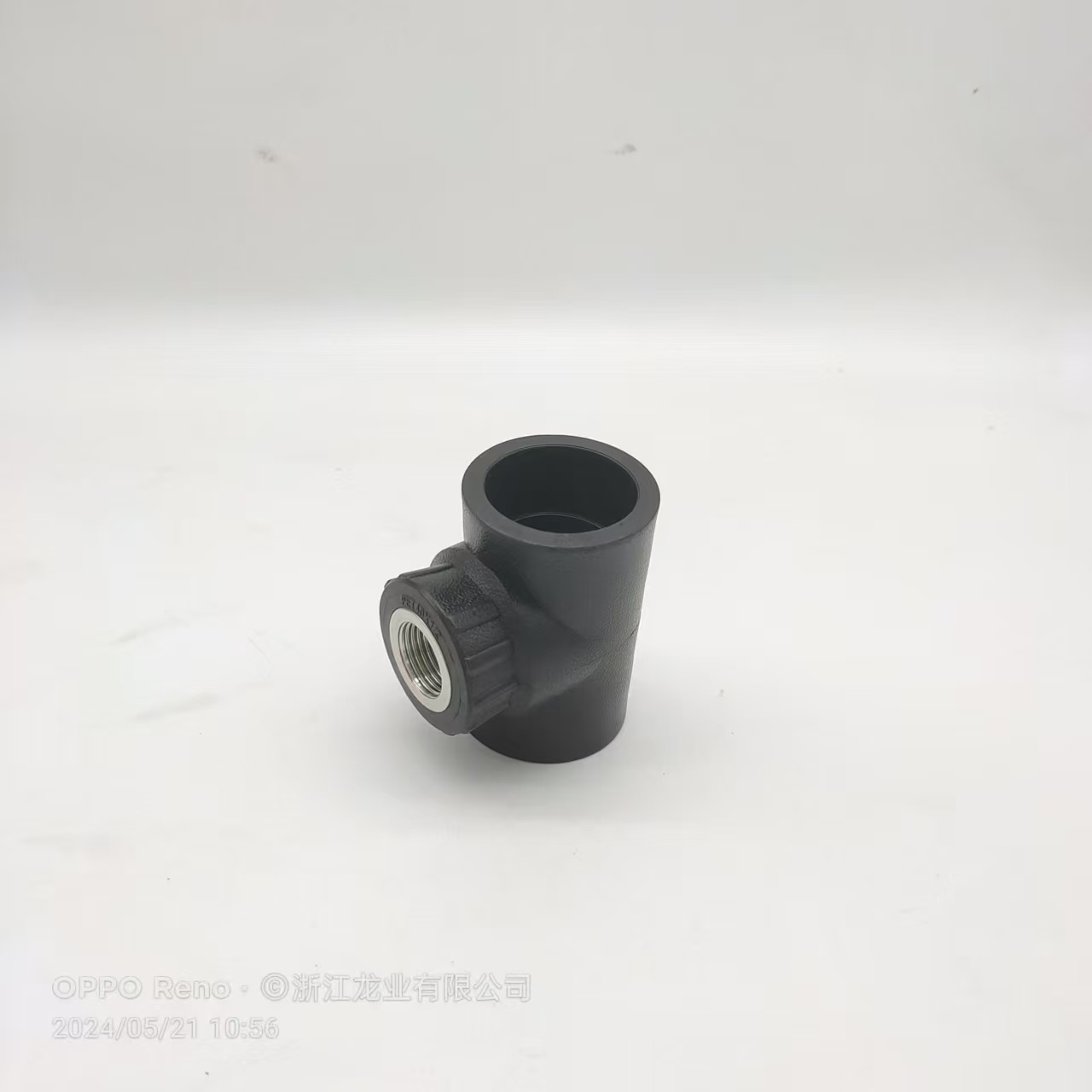

The Female Tee is made of high-quality polypropylene (PP/PPR/HDPE) combined with durable brass female threads. It is designed to connect three pipelines of the same diameter, with one threaded outlet to connect metal fittings or valves, ensuring a strong and leak-proof transition between plastic and metal systems.
Product Advantages
The product offers excellent resistance to high temperature, pressure, and corrosion. The brass female threads provide secure and durable connections, preventing stripping or leakage during long-term use. With a smooth inner surface, the tee ensures low fluid resistance and efficient flow. Lightweight, eco-friendly, and easy to install, it has a service life of over 50 years under normal conditions.
Product Applications
Female Tees are widely used in hot and cold water supply systems, household plumbing, central heating, HVAC pipelines, agricultural irrigation, and industrial fluid transportation. They are ideal for projects that require reliable connections between plastic pipes and metal fittings.
Operation Guide
1.Cut pipes vertically and clean the ends.
2.Heat the pipe ends and the tee socket with a hot melt welding machine.
3.Quickly insert the heated pipes into the sockets and align correctly.
4.Connect the female threaded end to the corresponding metal fitting or valve and tighten.
5.Allow proper cooling before testing the system.
