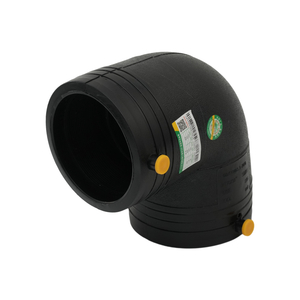

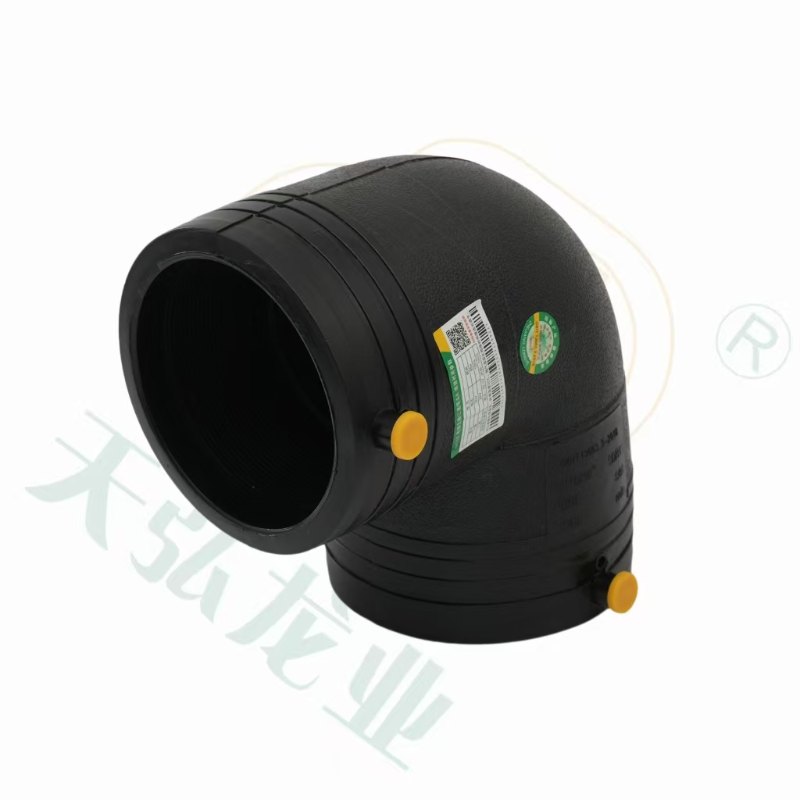

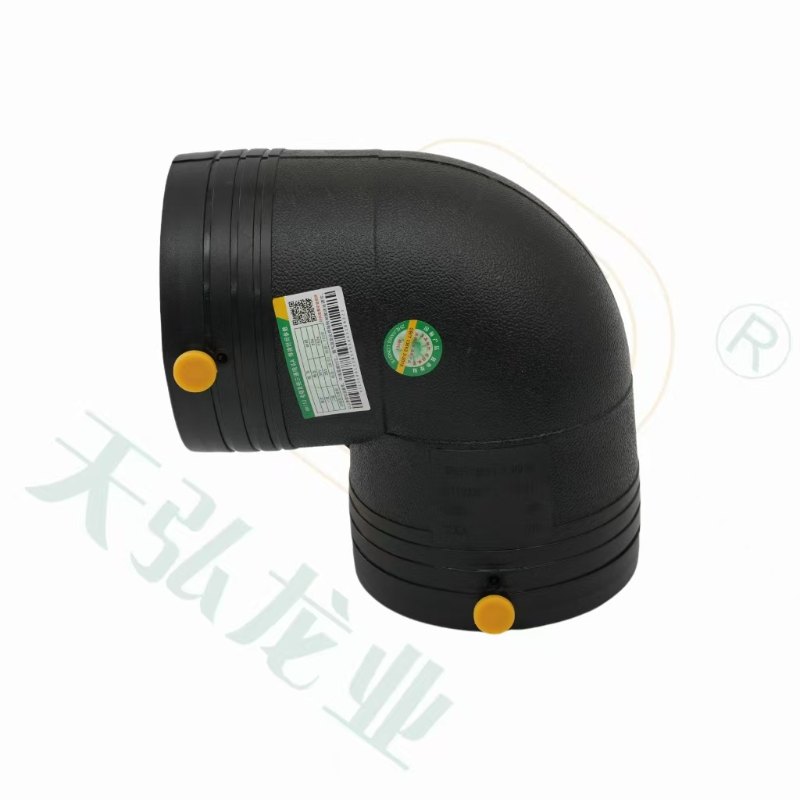

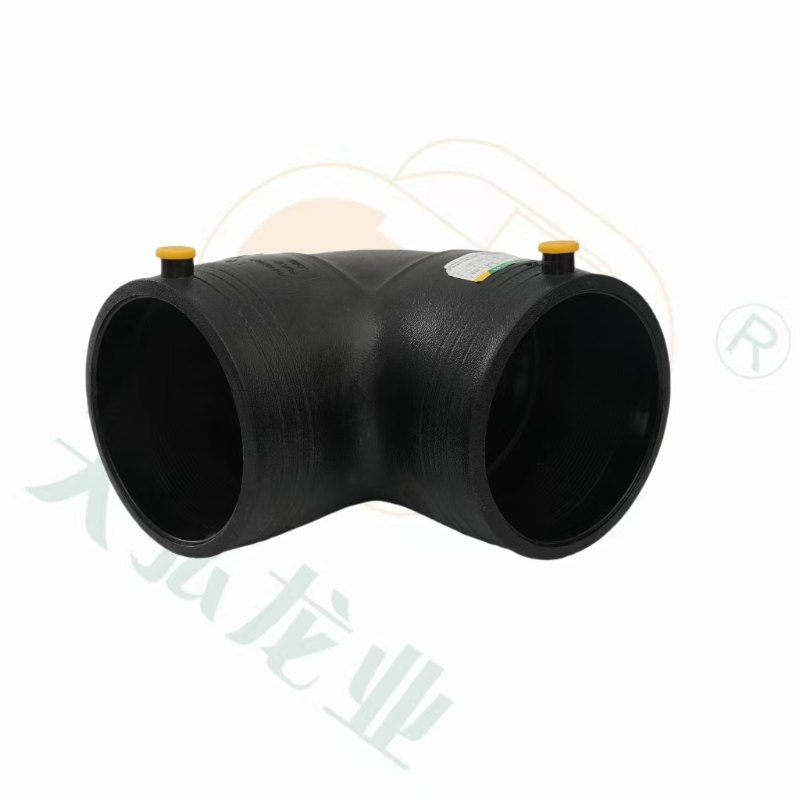

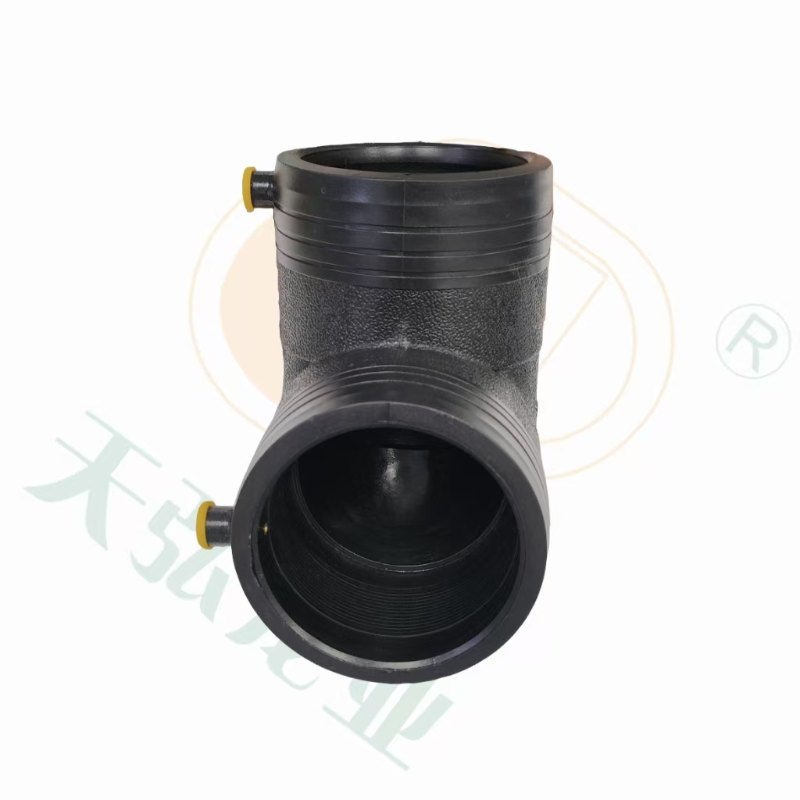

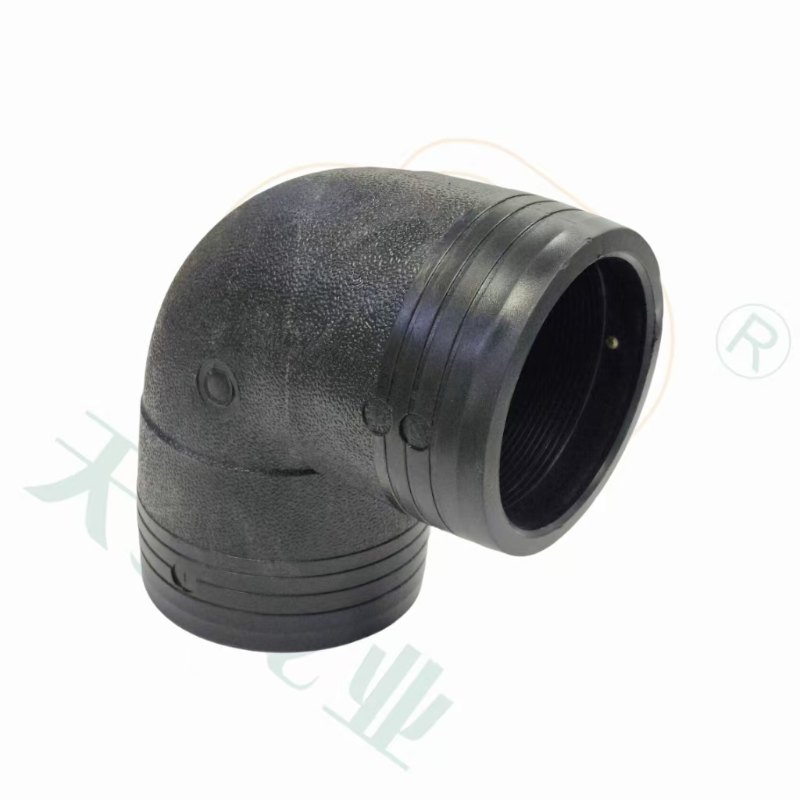

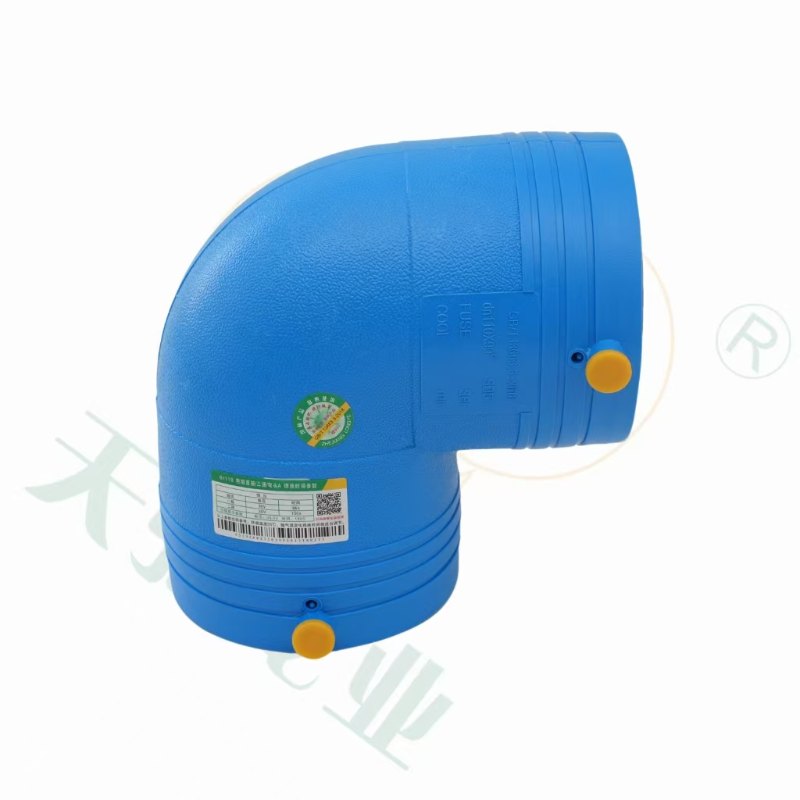

HDPE/PE100 Electrofusion 90 Degree Elbow For Water Pipe

90-Degree Electrofusion Elbow

    This 90-Degree Electrofusion Elbow is specifically designed for permanent, leak-free 90-degree directional changes in High-Density Polyethylene (HDPE) and other compatible polyolefin piping systems. Utilizing advanced electrofusion technology, integrated heating wires heat the joint, fusing the fitting and pipe into a homogeneous, monolithic structure. It is the ideal solution for building reliable and long-lasting water supply networks.

Understanding the HDPE 100 90-Degree Electrofusion Elbow

The HDPE 100 90-Degree Electrofusion Elbow is a specialized pipe fitting designed to change the flow direction of HDPE pipelines by 90 degrees. Made from high-quality HDPE 100 material, it ensures a secure, leak-proof connection and long-lasting performance. It is widely used in water supply, industrial fluid transport, and agricultural irrigation systems where pipeline direction needs a precise turn.

Core Features

Premium HDPE 100 Material

Manufactured from high-density polyethylene (HDPE 100), this elbow provides exceptional durability, flexibility, and impact resistance. It withstands corrosion, UV exposure, and environmental stresses, making it suitable for indoor, outdoor, and underground applications.

Reliable Electrofusion Connection

The elbow is designed for electrofusion welding, forming a permanent, homogeneous, and leak-proof bond with HDPE pipes. This ensures safe, stable operation under various pressure conditions.

Pressure and Temperature Resistance

Engineered to handle standard operational pressures in cold water and industrial fluid systems, the elbow maintains structural integrity without deformation under fluctuating pressures.

Impact and Mechanical Resistance

High-density material ensures excellent impact resistance during installation or in high-traffic or mechanically active areas, reducing the risk of cracks or damage.

Eco-Friendly and Non-Toxic

Made from recyclable and non-toxic HDPE 100, the elbow is safe for drinking water systems and environmentally friendly.

Easy Installation

Installation requires an electrofusion welding machine. Proper pipe surface preparation and controlled heating ensure a secure, permanent connection while minimizing labor and maintenance time.

Typical Applications

Water Supply Systems: Redirect water flow in residential, commercial, or municipal pipelines.

Industrial Fluid Transport: Safely transport chemicals, oils, and other industrial fluids.

Agricultural Irrigation: Optimize irrigation piping layouts for efficient water distribution.

Underground Pipelines: Ideal for buried pipelines due to resistance to corrosion, soil pressure, and mechanical stress.

Design Specifications

Size Compatibility

Designed to fit 100mm HDPE pipes, ensuring a precise, leak-proof connection.

Structural Design

Smooth inner surface reduces flow turbulence, while the optimized curvature maintains pressure tolerance. Reinforced walls enhance mechanical strength.

Electrofusion Mechanism

Embedded electrofusion coils provide uniform heating, fusing the elbow to the pipe to create a strong, permanent joint.

FAQ

Can the elbow be used in hot water systems?

No, HDPE 100 elbows are suitable for cold water and most industrial fluids, with a maximum working temperature of 40°C (104°F).

How to ensure proper installation?

Clean pipe ends, align the elbow, and perform electrofusion welding according to recommended settings. Allow proper cooling for a secure bond.

Is it suitable for underground use?

Yes, the elbow is ideal for underground pipelines, resistant to soil pressure, corrosion, and mechanical impacts.
