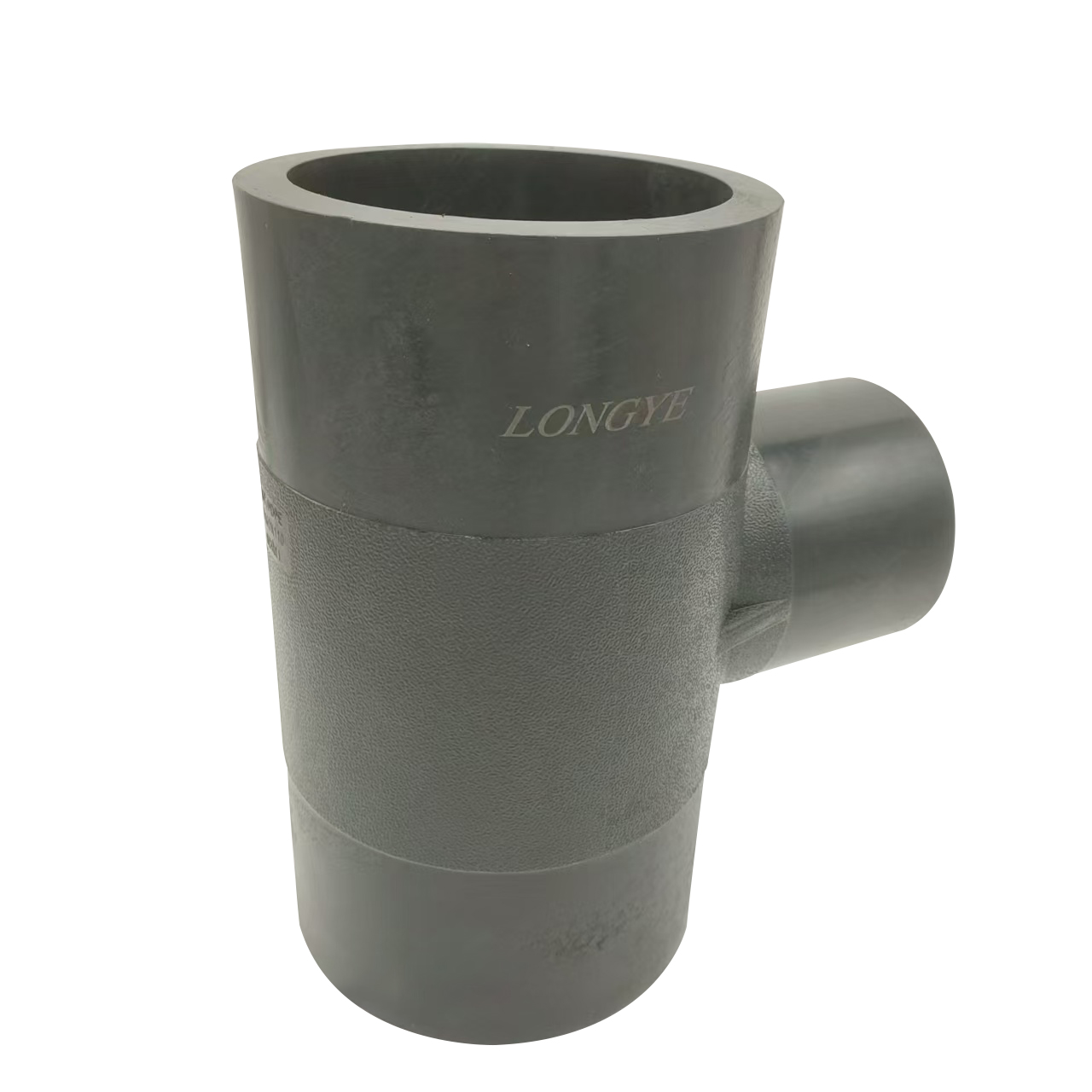

HDPE Reducing tee

Brand Name: LONGYE
Product Name: HDPE fittings
Color: Black
Size: 75-800mm
Pressure: PN10/PN12.5/PN16
Sample: Free Sample

Availability:

Quantity:



Inquire Add to Basket

Product Description

Specification(mm)	dn	dn1	L1	L2	L	H	Item Number
T75-50	75	50	68.5	57	199.5	94.5	LYGYT11-7550
T75-63	75	63	68.5	63	213	100.5	LYGYT11-7563
T90-50	90	50	78	57	214.7	102	LYGYT11-9050
T90-63	90	63	78	63	227	108	LYGYT11-9063
T90-75	90	75	78	70	239	115	LYGYT11-9075
T110-50	110	50	75	60	211	120	LYGYT11-11050
T110-63	110	63	75	70	224	130	LYGYT11-11063
T110-75	110	75	75	75	236	135	LYGYT11-11075
T110-90	110	90	75	78	250	138	LYGYT11-11090
T125-50	125	50	77	60	216	131.7	LYGYT11-12550
T125-63	125	63	77	63	229	134.7	LYGYT11-12563
T125-75	125	75	77	70	241	142.2	LYGYT11-12575
T125-90	125	90	77	72	256	144.2	LYGYT11-12590
T125-110	125	110	77	76.5	276	149	LYGYT11-125110
T140-63	140	63	80	63	224	142.5	LYGYT11-14063
T140-75	140	75	80	70	249	149.5	LYGYT11-14075
T140-90	140	90	80	72	264	152.5	LYGYT11-14090
T140-110	140	110	80	75	284	155.5	LYGYT11-140110
T140-125	140	125	80	79	299	159.5	LYGYT11-140125
T160-63	160	63	80	70	234	155	LYGYT11-16063
T160-75	160	75	80	75	246	160	LYGYT11-16075
T160-90	160	90	80	78	261	163	LYGYT11-16090
T160-110	160	110	80	80	280	165	LYGYT11-160110
T160-125	160	125	80	80	295	165	LYGYT11-160125
T180-63	180	63	80	75	235	171	LYGYT11-18063
T180-75	180	75	80	75	247	171	LYGYT11-18075
T180-90	180	90	80	79	261	175	LYGYT11-18090
T180-110	180	110	80	80	281	176	LYGYT11-180110
T180-125	180	125	80	80	295	175	LYGYT11-180125
T180-140	180	140	80	80	310	175	LYGYT11-180140
T180-160	180	160	80	80	330	175	LYGYT11-180160
T200-63	200	63	83.5	75	241	181	LYGYT11-20063
T200-75	200	75	83.5	75	253	181	LYGYT11-20075
T200-90	200	90	83.5	79	267	185	LYGYT11-20090
T200-110	200	110	83.5	80	287	186	LYGYT11-200110
T200-125	200	125	83.5	85	301	190	LYGYT11-200125
T200-160	200	160	83.5	85	340	190	LYGYT11-200160
T225-110	225	110	90	85	302	226	LYGYT11-225110
T225-160	225	160	90	85	351	226	LYGYT11-225160
T225-200	225	200	90	85	391	226	LYGYT11-225200
T250-110	250	110	100	85	305	217	LYGYT11-250110
T250-160	250	160	100	85	373	217	LYGYT11-250160
T250-200	250	200	100	85	412	216	LYGYT11-250200
T250-225	250	225	100	85	438	221	LYGYT11-250225
T280-110	280	110	109	105	341	252	LYGYT11-280110
T280-160	280	160	109	105	390	252	LYGYT11-280160
T280-200	280	200	109	105	429	251	LYGYT11-280200
T280-250	280	250	109	105	479	252	LYGYT11-280250
T315-110	315	110	110	110	347	276	LYGYT11-315110
T315-160	315	160	110	110	396	276	LYGYT11-315160
T315-200	315	200	110	110	435	275	LYGYT11-315200
T315-225	315	225	110	110	460	275	LYGYT11-315225
T315-250	315	250	110	110	485	275	LYGYT11-315250
T355-110	355	110	110	100	328	298	LYGYT11-355110
T355-160	355	160	110	100	377	297	LYGYT11-355160
T355-200	355	200	110	100	416	297	LYGYT11-355200
T355-250	355	250	110	100	467	298	LYGYT11-355250
T355-315	355	315	110	100	532	298	LYGYT11-355315
T400-110	400	110	110	110	351	321	LYGYT11-400110
T400-160	400	160	110	110	400	320	LYGYT11-400160
T400-200	400	200	110	110	439	320	LYGYT11-400200
T400-250	400	250	110	110	490	320	LYGYT11-400250
T400-315	400	315	110	110	555	320	LYGYT11-400315
T450-110	450	110	110	110	359	350	LYGYT11-450110
T450-160	450	160	110	110	408	349	LYGYT11-450160
T450-200	450	200	110	110	447	348	LYGYT11-450200
T450-250	450	250	110	110	497	346	LYGYT11-450250
T450-315	450	315	110	110	562	349	LYGYT11-450315
T450-355	450	355	110	110	602	348	LYGYT11-450355
T450-400	450	400	110	110	647	347	LYGYT11-450400
T500-110	500	110	110	110	356	375	LYGYT11-500110
T500-160	500	160	110	110	406	375	LYGYT11-500160
T500-200	500	200	110	110	446	375	LYGYT11-500200
T500-250	500	250	110	110	495	375	LYGYT11-500250
T500-315	500	315	110	110	560	375	LYGYT11-500315
T500-400	500	400	110	110	644	379	LYGYT11-500400
T560-110	560	110	125	115	396	412	LYGYT11-560110
T560-160	560	160	125	115	443	412	LYGYT11-560160
T560-200	560	200	125	115	483	412	LYGYT11-560200
T560-250	560	250	125	115	532	412	LYGYT11-560250
T560-315	560	315	125	210	597	416	LYGYT11-560315
T560-400	560	400	125	210	681	416	LYGYT11-560400
T560-500	560	500	125	130	780	426	LYGYT11-560500
T630-110	630	110	130	115	404	447	LYGYT11-630110
T630-160	630	160	130	115	454	447	LYGYT11-630160
T630-200	630	200	130	115	494	447	LYGYT11-630200
T630-250	630	250	130	115	543	447	LYGYT11-630250
T630-315	630	315	130	120	608	451	LYGYT11-630315
T630-400	630	400	130	130	692	451	LYGYT11-630400
T630-500	630	500	130	140	791	461	LYGYT11-630500
T710-200	710	200	180	165	568	522	LYGYT11-710200
T710-315	710	315	180	165	681	521	LYGYT11-710315
T710-400	710	400	180	165	764	518	LYGYT11-710400
T710-500	710	500	180	165	864	520	LYGYT11-710500
T710-630	710	630	180	165	983	525	LYGYT11-710630
T800-200	800	200	185	170	606	573	LYGYT11-800200
T800-315	800	315	185	170	719	572	LYGYT11-800315
T800-400	800	400	185	170	802	569	LYGYT11-800400
T800-500	800	500	185	170	902	571	LYGYT11-800500
T800-630	800	630	185	170	1031	571	LYGYT11-800630

PE (polyethylene) fittings, now the actual project with more water supply pipe. Advantages:

(1) good low temperature performance

(2) resistance to mechanical vibration

(3) good toughness, can be wound disadvantages:

(1) melting point of 100 to 130 degrees Celsius, not suitable for hot water pipes, suitable for working temperature not more than 40 degrees C.

(2) easy to crack under stress, not easy to stain applicable range: suitable for cold water pipe, widely used as drinking water pipe and rain water pipe connection mode: 1. Hot-melt connection when pipes and fittings made from the same Thermoplastic are connected with each other, the surface of the connecting part is heated by a special hot-melt machine, and the body materials at the connecting contact surface are fused with each other, after cooling, the connection becomes a whole. The hot-melt connection comprises a butt-type hot-melt connection, a socket-type hot-melt connection and an electric-melt connection.
