| Quantity: | |
|---|---|
SIZE | WEIGHT | PCS/CTN |
20x1/2" 20x3/4" 25x1/2" 25x3/4" 25x1" 32x3/4" 32x1" 32x1-1/4" 40x1" 40x1-1/4" 40x1-1/2" 50x1-1/2" 50x1-1/2" 50x2" 63x1-1/2" 63x2" 63x2-1/2" 75x2" 75x2-1/2" 75x3" 90x2-1/2" 90x3" 90x4" 110x3" 110x4" | 89 93 130 133 140 199 204 214 389 402 419 610 625 645 958 992 1026 1457 1466 1523 2228 2272 2342 3628 3715 | 96 96 60 60 60 40 40 40 20 20 20 13 13 13 9 9 9 6 6 6 6 6 6 4 4 |
Description

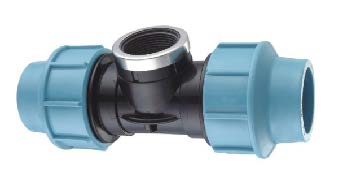

PP compression fittings for HDPE pressure piping applications.
Fast and reliable connections.
Extensively used worldwide.
Range
from 20mm to 110 mm
Wroking Pressure
Pressure Rating:200psi@73℃(23℃)
Features
Easy for installation.
One source for all your metric needs and BSP/NTP connections.
UV stablilized.
Applications
Water distribution.
Industrial pipe systems.
Irrigation.
Mines,highland and desert using.
Seko Plastic
D16mm-D63mm(recommeded)
A Chamfer the pipe with the beveler tool(coode05160)
B Slacken the ring nut without removing from the body Check that O-ring and clip ring are in proper position.
C Insert the pipe end without tightening the ring nut.Push the fitting until the pipe oversteps the O-ring and reaches the stop.
D Hand tighten the ring unt then tighten further with a strap/chain wrench.
D75mm-D110mm(recommended)
A Atfer preparing pipe ends,unscrew the fitting.Then,remove all internal components:the ring nut,the clip ring,the packing presser bush and the O-ring.
B Push the pipe into the fittins until it reaches the slop.Insert the O-ring and position the same by inserting the packing-presser bush.
C Displace the clip ring onto the pipe as shown in picture C.
D Slide the ring nut over the clip ring and tighten with a strap/chain wrench in order to compete the assembly.
