| Quantity: | |
|---|---|
SIZE | WEIGHT | PCS/CTN |
25x20x25 32x20x32 32x25x32 40x20x40 40x25x40 40x32x40 50x20x50 50x25x50 50x32x50 50x40x50 63x32x63 63x40x63 63x50x63 75x50x75 75x63x75 90x63x90 90x75x90 110x63x110 110x75x110 110x90x110 | 161 218 237 400 419 443 652 677 701 769 1108 1169 1247 1639 1746 2419 2488 3908 4094 4332 | 60 40 40 20 20 12 12 12 12 7 7 7 6 6 4 4 4 4 4 4 |
Description

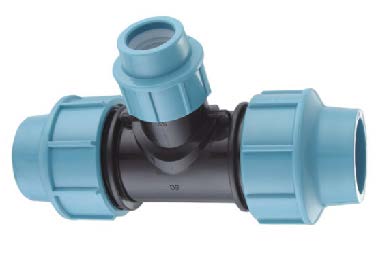

PP compression fittings for HDPE pressure piping applications.
Fast and reliable connections.
Extensively used worldwide.
Range
from 20mm to 110 mm
Wroking Pressure
Pressure Rating:200psi@73℃(23℃)
Features
Easy for installation.
One source for all your metric needs and BSP/NTP connections.
UV stablilized.
Applications
Water distribution.
Industrial pipe systems.
Irrigation.
Mines,highland and desert using.
Seko Plastic
D16mm-D63mm(recommeded)
A Chamfer the pipe with the beveler tool(coode05160)
B Slacken the ring nut without removing from the body Check that O-ring and clip ring are in proper position.
C Insert the pipe end without tightening the ring nut.Push the fitting until the pipe oversteps the O-ring and reaches the stop.
D Hand tighten the ring unt then tighten further with a strap/chain wrench.
D75mm-D110mm(recommended)
A Atfer preparing pipe ends,unscrew the fitting.Then,remove all internal components:the ring nut,the clip ring,the packing presser bush and the O-ring.
B Push the pipe into the fittins until it reaches the slop.Insert the O-ring and position the same by inserting the packing-presser bush.
C Displace the clip ring onto the pipe as shown in picture C.
D Slide the ring nut over the clip ring and tighten with a strap/chain wrench in order to compete the assembly.
