| Quantity: | |
|---|---|
SIZE | PCS/CTN | WEIGHT | MEASURE(mm) | ||
20 25 32 40 50 63 75 90 | 90 57 38 20 16 8 4 4 | 195 325 445 710 1070 1760 2150 4480 | 45 45 50 48 50 50 50 40 | 35 35 30 35 30 30 30 40 | 31 37 35 35 35 35 35 46 |
Description

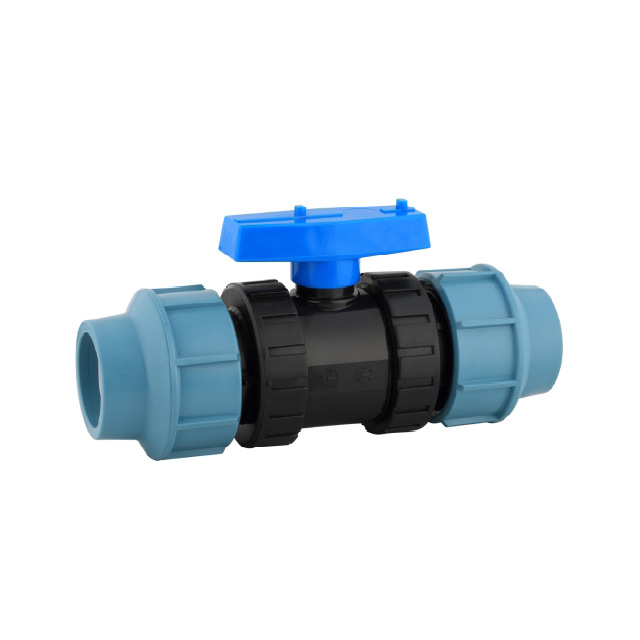

PP compression fittings for HDPE pressure piping applications.
Fast and reliable connections.
Extensively used worldwide.
Range
from 20mm to 110 mm
Wroking Pressure
Pressure Rating:200psi@73℃(23℃)
Features
Easy for installation.
One source for all your metric needs and BSP/NTP connections.
UV stablilized.
Applications
Water distribution.
Industrial pipe systems.
Irrigation.
Mines,highland and desert using.
Seko Plastic
D16mm-D63mm(recommeded)
A Chamfer the pipe with the beveler tool(coode05160)
B Slacken the ring nut without removing from the body Check that O-ring and clip ring are in proper position.
C Insert the pipe end without tightening the ring nut.Push the fitting until the pipe oversteps the O-ring and reaches the stop.
D Hand tighten the ring unt then tighten further with a strap/chain wrench.
D75mm-D110mm(recommended)
A Atfer preparing pipe ends,unscrew the fitting.Then,remove all internal components:the ring nut,the clip ring,the packing presser bush and the O-ring.
B Push the pipe into the fittins until it reaches the slop.Insert the O-ring and position the same by inserting the packing-presser bush.
C Displace the clip ring onto the pipe as shown in picture C.
D Slide the ring nut over the clip ring and tighten with a strap/chain wrench in order to compete the assembly.
